Description
| Specification | Details |
|---|---|
| Brand | AirLive |
| Model | C1205R (aka AC1205R) |
| Wireless Standard | IEEE 802.11ac/n/g/b |
| Bands & Speeds | 2.4 GHz: up to 300 Mbps; 5 GHz: up to 867 Mbps |
| Antennas | 4 × 5 dBi external (fixed) |
| Ethernet Ports | 1 × WAN (10/100 Mbps); 4 × LAN (10/100 Mbps) |
| Modes Supported | AP- Router- Bridge- Repeater- Client |
| Security | WEP- WPA/WPA2- WPA-PSK/WPA2-PSK (TKIP/AES)- 802.1X |
| Management | Web UI; AirLive Central compatible |
| Setup Features | SSID control- VLAN- QoS- Guest networks |
| Transmit Power | < 20 dBm EIRP |
| Power Input | AC 100–240 V; DC 12 V/0.5 A |
| Operating Temp | 0–50 °C; Humidity up to 95%- non-condensing |
| Dimensions | Approx. 22 × 16.4 × 18.5 cm (with antennas) |
| Certifications | IEEE 802.11ac/n/g/b standards |

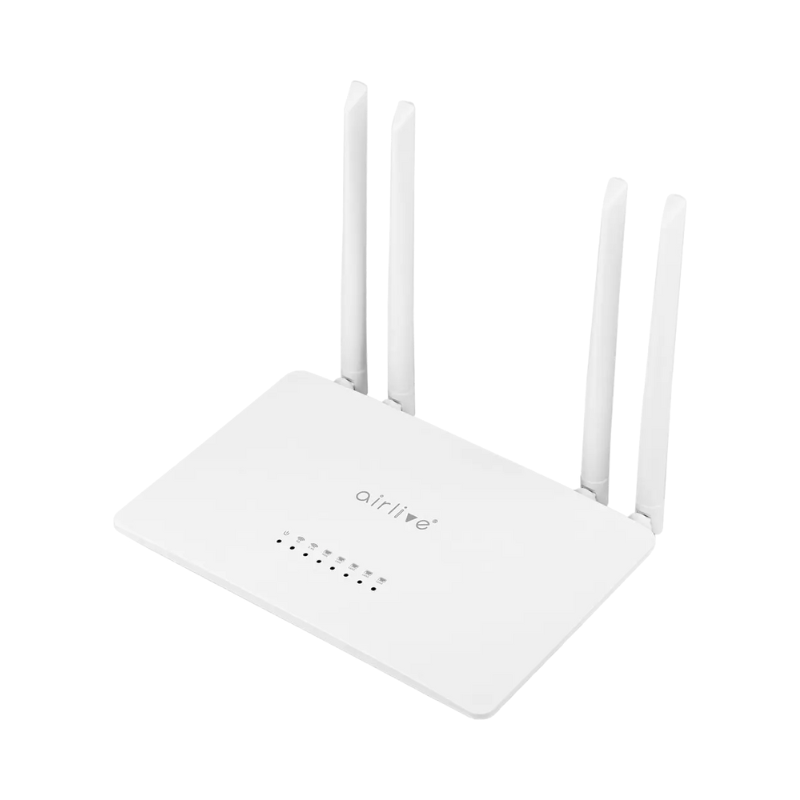

AirLive C1205R (AC1205R) Dual-Band Access Point / Router
Versatile Network Mode and Dual-Band AC Performance
The AirLive C1205R operates as a dual-band Wi‑Fi 5 (802.11ac) device- providing up to 1200 Mbps combined throughput—867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. It can function in multiple roles including Access Point- Router- Repeater- Bridge- or Client- making it flexible for home or small office use.
360° Coverage with High-Gain Antennas
Equipped with four fixed 5 dBi external antennas- the C1205R delivers up to 50% greater wireless reach compared to average routers. This makes it ideal for large rooms or areas with thick walls prone to signal drop-offs.
Gigabit Ethernet Ports for Stable Wired Connections

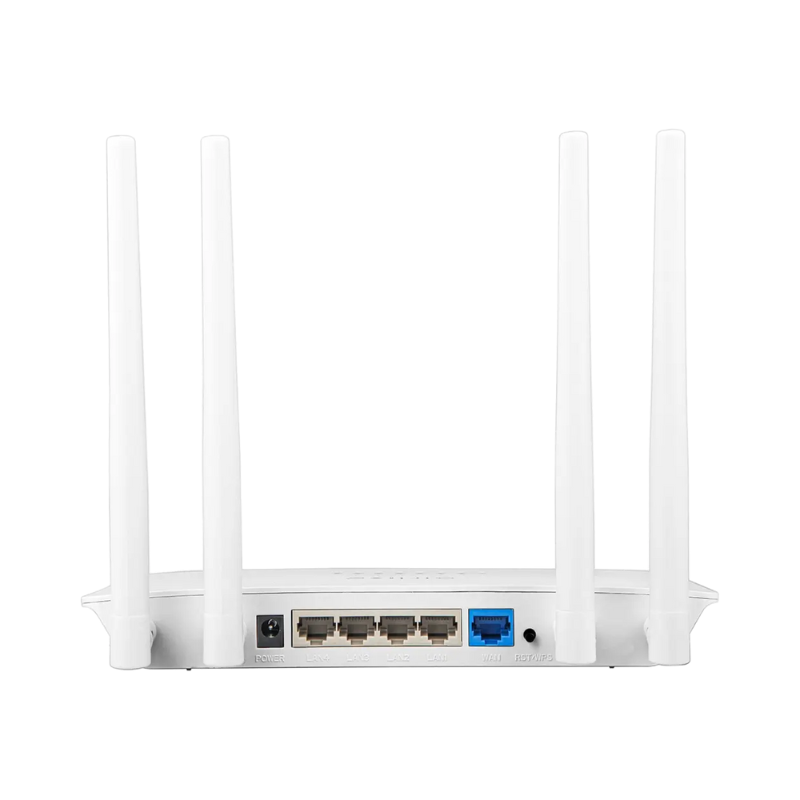

It offers 1 × WAN and 4 × LAN ports (10/100 Mbps)- enabling wired connections for PCs- smart TVs- NAS- or VOIP devices. A web-based interface ensures easy remote setup and network management.
Advanced Features for Deployment and Management
Supports SSID broadcasting control- guest networks- WPA/WPA2 encryption- 802.1X- and remote web management. Multiple SSIDs and VLAN options through firmware are available when used with AirLive Central management software.
Questions & Answers
Q: Can this replace my home router?
A: Yes—when set in Router mode- it handles both wired and wireless internet connections with dual-band speed and flexible port options.
Q: How strong is the wireless range?
A: The four 5 dBi antennas extend coverage by around 50%- making it suitable for larger rooms or moderate interference zones.
Q: Is it easy to configure?
A: Yes—it includes a setup assistant via web interface and supports remote management using optional AirLive Central software.
Q: Does it support guest Wi‑Fi networks?
A: Yes—you can create separate SSIDs- set access restrictions- and manage network usage through VLAN settings.
Q: Can it work as a Wi‑Fi repeater?
A: Yes—it supports Repeater and WDS Bridge modes to extend coverage without extra devices.
