Description
| Specification | Details |
|---|---|
| Brand | AirLive |
| Model | W6184QAX |

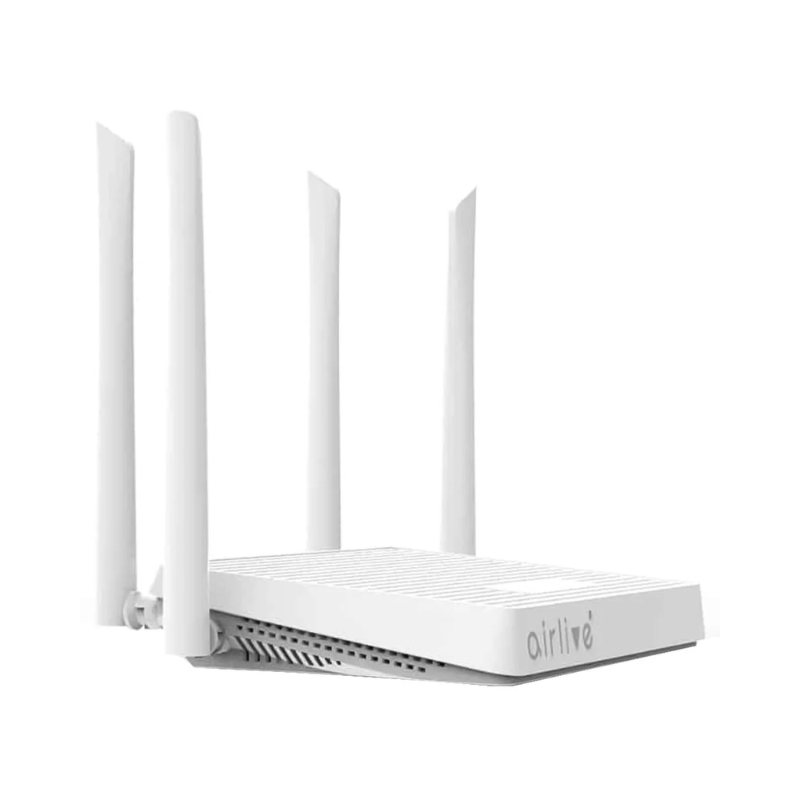

| Color | Black (also variant in White) |
| Wireless Standard | Wi‑Fi 6 (802.11ax) |
| Max Speed | 1800 Mbps (2.4 GHz: 600 Mbps + 5 GHz: 1200 Mbps) |
| Antennas | 4 × external 5 dBi |
| CPU / RAM / Flash | Qualcomm IPQ6000 1.2 GHz Quad-Core / 256 MB DDR3 / 128 MB flash |
| Ethernet Ports | 1 × Gigabit WAN- 3 × Gigabit LAN |
| Security & Features | WPA3- VPN server- parental control- band steering- OBSS- OFDMA |
| Mesh & Modes | Smart Easy MESH- Router/AP/Bridge/Repeater/Client modes |
| Power Input | 12 V DC- 1–1.5 A |
| Operating Range | 0–50 °C- up to 90% humidity non-condensing |
| Dimensions | ~275 × 270 × 40 mm |
| Device Capacity | Up to 128 devices supported |
| Warranty | 2 years |
AirLive W6184QAX Wi‑Fi 6 Access Point & Router
High‑Performance Dual‑Band Wi‑Fi 6
The W6184QAX supports the latest Wi‑Fi 6 (802.11ax) standard- offering up to 1800 Mbps combined speeds (600 Mbps on 2.4 GHz + 1200 Mbps on 5 GHz). Compared to Wi‑Fi 5 AC1200- it delivers 1.25× faster speed and up to 4× greater network capacity in dense environments
Easy‑MESH & Extended Coverage
Equipped with four high‑gain 5 dBi antennas- the device supports Smart Easy MESH networking—enabling seamless roaming under a single SSID and automatically directing traffic to optimize signal strength using OFDMA and OBSS technologies
Sturdy Hardware & Multi‑Device Support
Powered by a Qualcomm IPQ6000 quad‑core 1.2 GHz CPU- along with 256 MB DDR3 RAM and 128 MB Flash- it can reliably manage up to 128 devices simultaneously
Flexible Modes & VPN Ready
Switch easily between Router- Access Point- Bridge- Repeater- or Client modes. Built‑in VPN server and IPTV‑priority routing add flexibility for home or small office use .
Gigabit LAN & WAN Ports
Supports 1× Gigabit WAN and 3× Gigabit LAN ports- offering high‑speed wired connections ideal for gaming- streaming- and NAS access
Advanced Security & Controls
Includes WPA3 encryption- parental controls- band steering- and full OpenWrt support- allowing advanced customization via scripting languages like Python- Lua- and NodeJS .
Questions & Answers
Q: Can it cover a whole house?
A: Yes—with four high-gain antennas- Smart Easy MESH- and range boost- it offers reliable Wi‑Fi coverage across multiple rooms .
Q: Is it future-proof?
A: Definitely—Wi‑Fi 6- WPA3 support- and OpenWrt make it adaptable to evolving network needs .
Q: Can it handle many clients?
A: Yes—its powerful CPU and 256 MB RAM enable stable support for up to 128 devices .
Q: Does it support wired devices?
A: Absolutely—three Gigabit LAN ports and a WAN port accommodate wired connections for high-speed home networking .
Q: What level of security does it use?
A: It uses advanced WPA3 encryption- parental controls- VPN server support- and secure MESH roaming
