Description
| Feature | Specification |
|---|---|
| Brand / Model | JOYROOM JR‑TCF05EU (Flash Series) |
| Ports | 1 × USB‑C (PD 20 W)- 1 × USB‑A (QC3.0- up to 20 W) |
| USB‑C Output | 5 V/3 A- 9 V/2.22 A- 12 V/1.67 A (PD) |
| USB‑A Output | 5 V/3 A- 9 V/2 A- 12 V/1.5 A (QC3.0) |
| Supported Protocols | PD3.0- QC3.0- Samsung AFC- Huawei FCP |
| Input Voltage | AC 100–240 V- 50/60 Hz- 0.8 A max |
| Total Output Capacity | Up to 20 W total load |
| Material | Fireproof PC plastic |
| Dimensions (approx.) | ~42 × 48 × 75 mm |
| Weight | ~90 g |
| Safety Features | Over‑voltage- Over‑current- Over‑temperature- Short‑circuit protection |
| Certifications | CE- FCC- RoHS |
| Compatibility | USB‑C and USB‑A devices including iPhone- Android phones/tablets |
| Ideal Use Case |
Charging two devices simultaneously at fast speeds in home or travel environments |

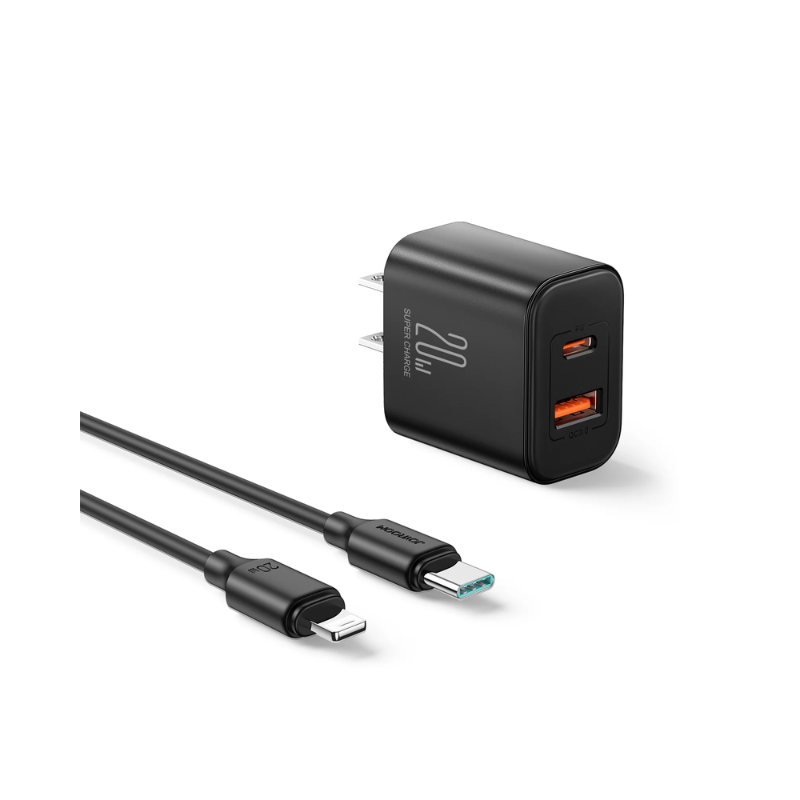

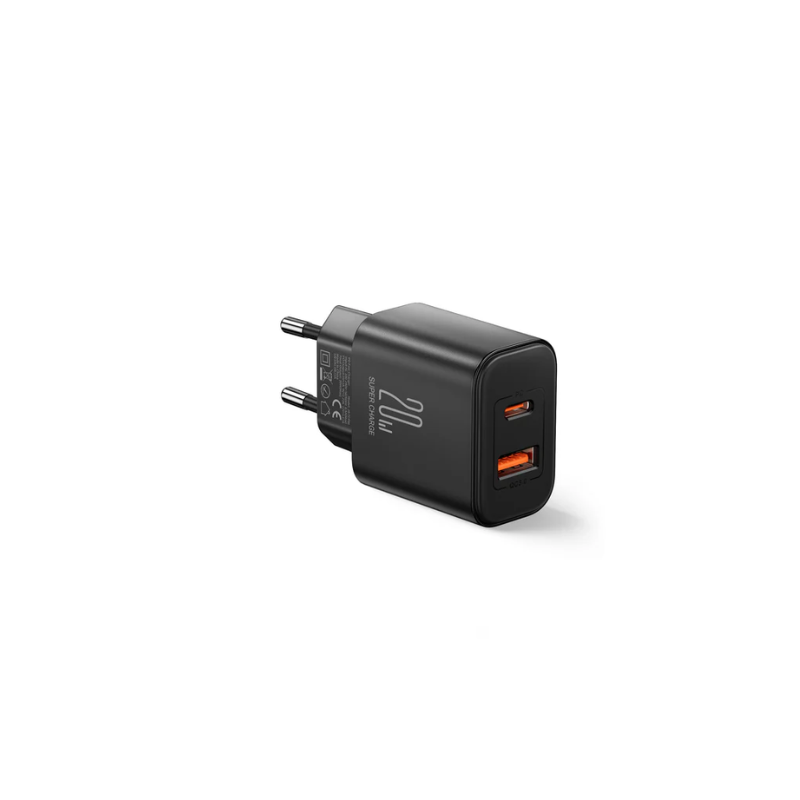

JOYROOM Fast Charger Dual-Port Type‑C + USB‑A 20 W Black (Model: JR‑TCF05EU)
Overview
The JOYROOM JR‑TCF05EU is a dual‑output fast charger featuring one USB‑C and one USB‑A port- delivering up to 20 W for simultaneous charging of two devices. Its compact design- international voltage support- and multiple safety protections make it an ideal companion for users who need reliable- rapid charging at home or on the go.
Fast Charging Features
-
Offers Power Delivery (PD) output: 5 V = 3 A- 9 V = 2.22 A- 12 V = 1.67 A on the Type‑C port.
-
USB‑A port supports Quick Charge 3.0 (QC3.0): 5 V = 3 A- 9 V = 2 A- 12 V = 1.5 A.
-
Supports protocols PD3.0- QC3.0- Samsung AFC- and Huawei FCP for broad compatibility.
-
Capable of charging two devices simultaneously without reducing charging speed.
Safety & Build
-
Constructed from fire-resistant PC material to reduce thermal risk.
-
Includes a smart chip and multiple safety protections: over-current- over-voltage- over-temperature- short-circuit. Certified under CE- FCC- and RoHS standards. Compact footprint (~42 × 48 × 75 mm) and lightweight (~90 g)- ideal for travel or desktop use.
Compatibility & Use Cases
-
Compatible with most USB‑C and USB‑A devices: such as iPhones- Samsung and Huawei smartphones- tablets- and accessories.
-
Supports world voltage range (AC 100–240 V- 50/60 Hz) for global use.
Why Choose the JOYROOM JR‑TCF05EU?
Q: Can it charge two devices at full speed simultaneously?
A: Yes — each port supports Fast Charge protocols independently- so dual-device charging doesn’t compromise speed.
Q: Is it safe for everyday use?
A: Absolutely — built with fire-resistant materials and protected by multiple safety systems- certified by CE/FCC/RoHS standards.
Q: Is the charger compact enough for travel?
A: Yes — it's small- travel-friendly- and universally compatible with standard outlets worldwide
