Description
| Specification | Details |
|---|---|
| Brand | JOYROOM |
| Model | JR‑TCL02 |
| Color | Black |
| Input | 100–240 V AC- 50/60 Hz- max 1.5 A |
| Built‑in Cable | Retractable USB‑C- up to 70 cm |
| Ports | USB‑C ×2- USB‑A ×1 (dual‑port configuration) |
| USB‑C Output (single) | 5 V/3 A- 9 V/3 A- 12 V/3 A- 15 V/3 A- 20 V/3.25 A; PPS 3.3–11 V/5 A |
| USB‑A Output | 5 V/3 A- 9 V/3 A- 12 V/3 A- 20 V/3 A |
| Power Distribution Modes | USB‑C1+USB‑A: 45 W+18 W; C1+C2: 45 W+20 W; All three: 45 W+15 W |
| Total Output | 65 W max |
| Safety Features | Over‑current- voltage- short‑circuit- over‑temp- surge protection |
| Material | Fire-resistant PC/ABS |
| Weight | ~155–271 g (varies by source) |
| Certifications | CE- UKCA- FCC- RoHS |
| Warranty | Typically 18 months |

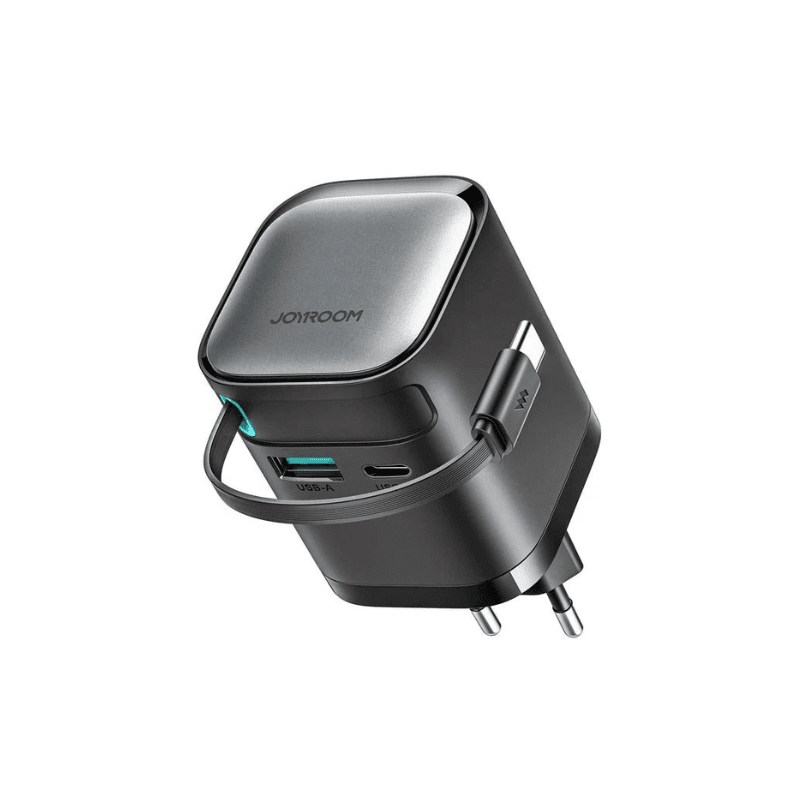

JOYROOM JR‑TCL02 65 W GaN Charger with Built‑in Retractable Cable

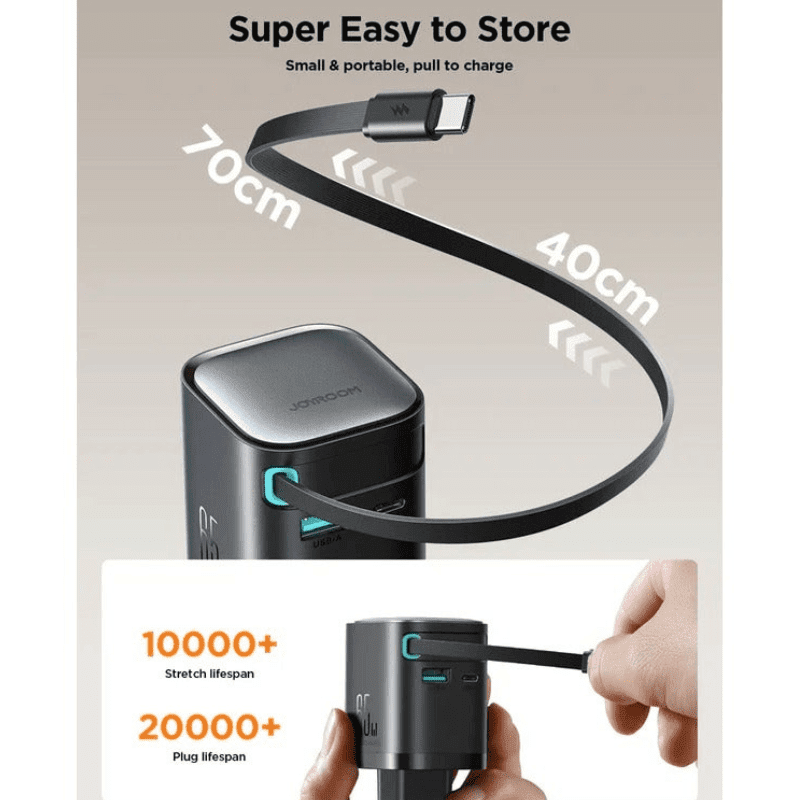

Built‑in Retractable USB‑C Cable for Ultimate Portability
The JR‑TCL02 features a self-coiling USB‑C cable integrated into its compact shell. With a cable length of up to 70 cm- there's no need to carry a separate charging cord—ideal for travel or desk setups with minimal clutter .
High-Speed Dual‑Port Charging (USB‑C + USB‑A)
Offers two charging ports: USB‑C and USB‑A. The intelligent power distribution allows simultaneous charging:
-
USB‑C + USB‑A: up to 45 W + 18 W
-
USB‑C1 + USB‑C2: up to 45 W + 20 W
-
All three ports concurrently: up to 45 W + 15 W shared 65 W Full-Speed Laptop Charging
Supports full-speed 65 W delivery via USB‑C- sufficient to charge over 98% of laptops—from MacBooks to Windows ultrabooks—at maximum rated speed
Innovative GaN Technology with Thermal Control
Built using next-gen GaN (Gallium Nitride) for high energy efficiency (≈97%) and low heat output. The charger uses AI-driven thermal regulation to remain cool under load
Certified Six-Point Safety Protection
Featuring military-grade protection against over-current- over-voltage- short circuits- overheating- and surge. The fire-resistant PC casing ensures safe operation even under continuous use
Frequently Asked Questions
Q: Why should I choose the JR‑TCL02 over a regular charger?
A: It combines fast 65 W charging- a retractable USB‑C cable- and GaN efficiency—delivering laptop-grade power in a space-saving- all-in-one design.
Q: Can it charge my laptop and phone at the same time?
A: Yes. You can allocate up to 45 W to your laptop via USB‑C- while simultaneously powering a phone or accessory at up to 18 W via USB‑A.
Q: Will it overheat after extended use?
A: Unlikely. The GaN chip and AI-driven thermal control effectively minimize heat- and built-in protections ensure safe multi-device charging
