Description
| Feature | Details |
|---|---|
| Chipset | INTEL Z790 |
| CPU Support | Intel® Core™ 14th/13th/12th Gen- Intel® Pentium® Gold- Intel® Celeron® |
| CPU Socket | LGA 1700 |
| Memory | 4x DDR5 UDIMM- Max Capacity 256GB |
| Memory Support | 7800+(OC)- 7600(OC)- 7400(OC)- 7200(OC)- 7000(OC)- 6800(OC)- 6600(OC)- 6400(OC)- 6200(OC)- 6000(OC)- 5800(OC)- 5600(JEDEC)- 5400(JEDEC)- 5200(JEDEC)- 5000(JEDEC)- 4800(JEDEC) MHz |
| Memory Overclocking | 1DPC 1R Max speed up to 7800+ MHz- 1DPC 2R Max speed up to 6600+ MHz- 2DPC 1R Max speed up to 6400+ MHz- 2DPC 2R Max speed up to 5600+ MHz |
| Intel® XMP 3.0 OC Support | Yes |
| Dual-Channel Mode Support | Yes |
| Non-ECC Memory Support | Yes |
| Onboard Graphics | 1x HDMI™ (2.1)- 1x DisplayPort (DP 1.4)- 4K 60Hz- 8K 60Hz (only with integrated graphics) |
| PCI Slots | 2x PCI-E x16- 1x PCI-E x1 |
| Audio | Realtek® ALC4080- 7.1-Channel USB High Performance Audio- 32-Bit/384 kHz playback |
| Storage | 4x M.2- 8x SATA 6G- PCI-E x4- RAID 0- 1- 5- 10 Support |
| USB Ports | 4x USB 2.0 (Front)- 4x USB 5Gbps Type A (Rear)- 2x USB 5Gbps Type A (Front)- 4x USB 10Gbps Type A (Rear)- 1x USB 10Gbps Type C (Rear)- 1x USB 10Gbps Type C (Front)- 1x USB 20Gbps Type C (Rear) |
| LAN | Intel® 2.5Gbps LAN |
| Wireless LAN & Bluetooth | Wi-Fi 7 (MU-MIMO TX/RX- 2.4GHz/5GHz/6GHz up to 5.8Gbps)- Bluetooth® 5.4 |
| LED Features | 4x EZ Debug LED |

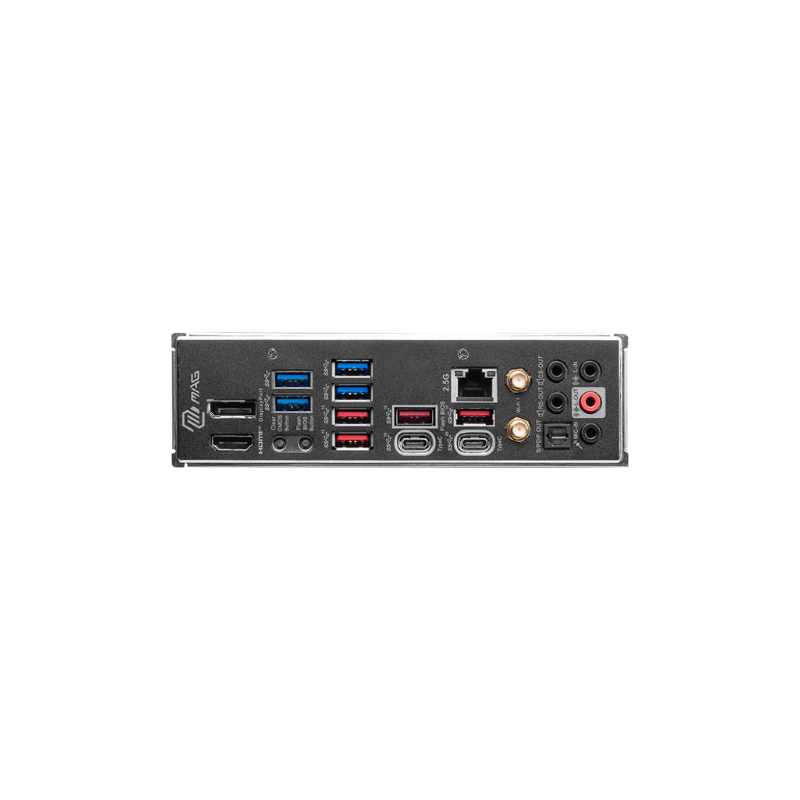

| Back Panel Ports | Display Port- USB 3.2 Gen 1 5 Gbps (Type-A)- USB 3.2 Gen 2 10Gbps (Type-A)- 2.5G LAN- Wi-Fi / Bluetooth- Audio Connectors- HDMI™- Clear CMOS- Flash BIOS- USB 3.2 Gen 2 10Gbps (Type-A)- USB 3.2 Gen 2x2 20Gbps (Type-C) |
| Operating System | Windows® 11 64-bit- Windows® 10 64-bit |

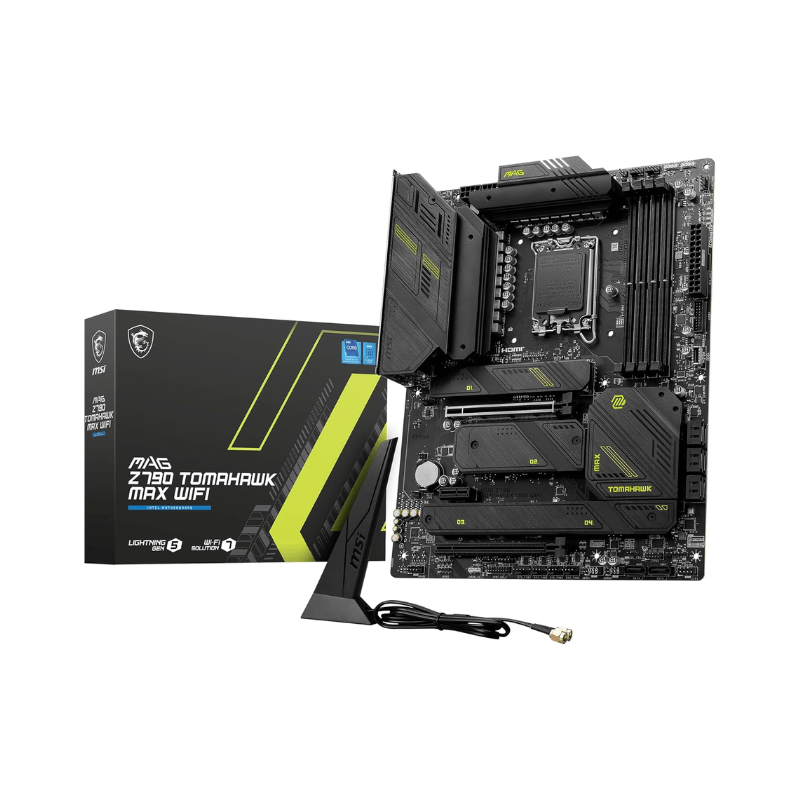

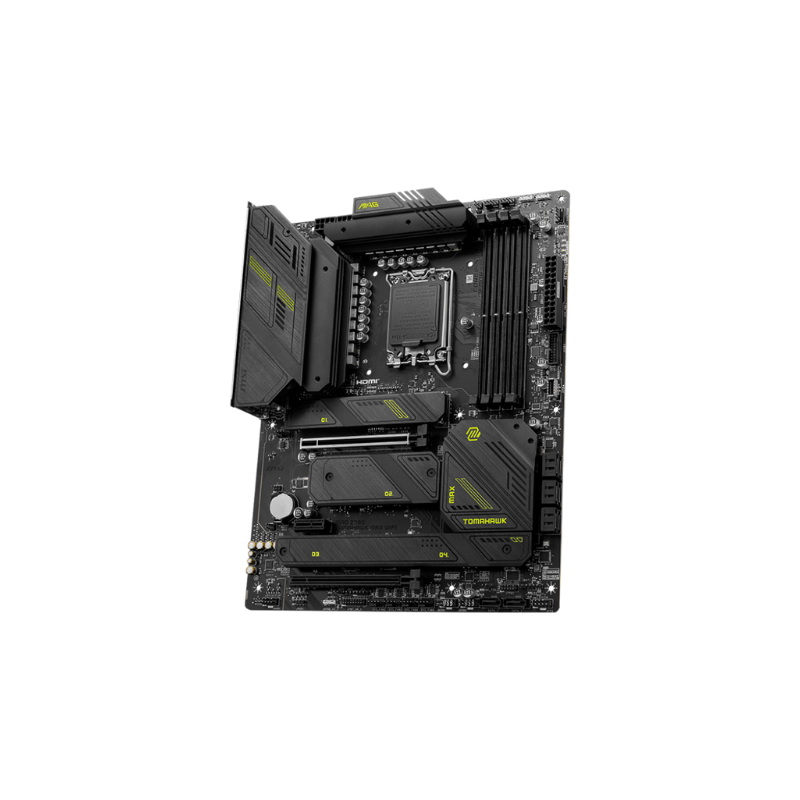

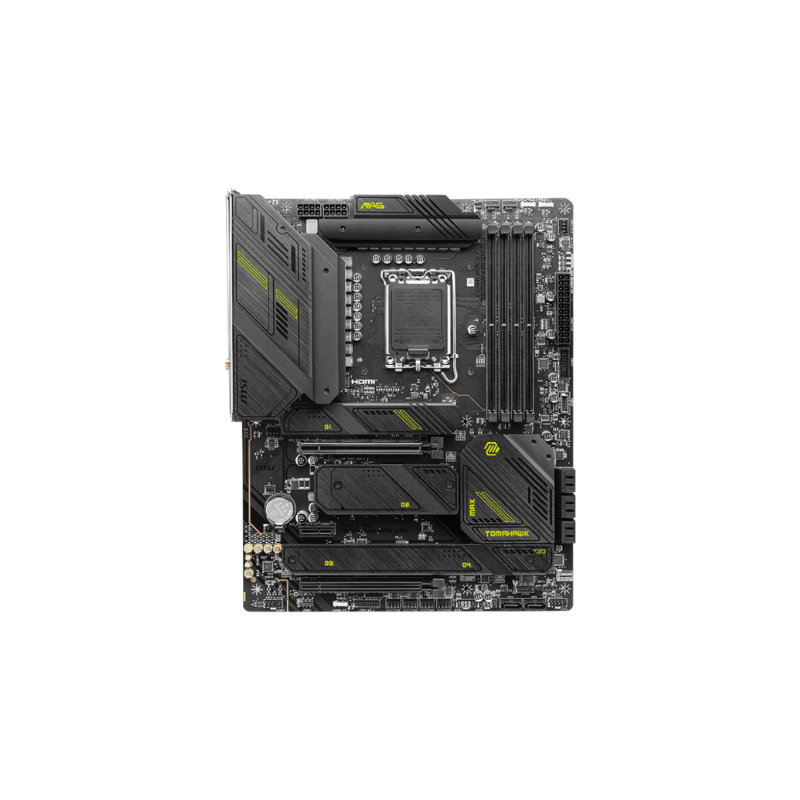

MotherBoard MSI INTEL - MAGZ790 TOMAHAWK Max WIFI:
MAG Z790 TOMAHAWK MAX WIFI
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors- Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory- up to 7800+(OC) MHz
Enhanced Power Design: 16+1+1 Mirrored Power Arrangement- dual 8-pin CPU power connectors- Core Boost- Memory Boost
Lightning Fast Game experience: PCIe 5.0 slot- Lightning Gen 5 M.2- USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
