Description
| Specification | Details |
|---|---|
| Brand | PNY (VERTO OC Dual‑Fan) |
| Model / Part No. | GeForce RTX 4070 SUPER – VCG4070S12DFXPB1‑O |
| GPU Architecture | NVIDIA Ada Lovelace |
| CUDA Cores | 7-168 |
| Core Clock | 1-980 MHz (base) / ~2-490 MHz (boost) |
| Memory | 12 GB GDDR6X |
| Memory Speed / Bandwidth | 21 Gbps / ~504 GB/s |
| Memory Interface | 192‑bit |
| TDP | 220 W |
| Power Connector | 1 × 16‑pin PCIe (adapter for 2 × 8‑pin included) |
| Outputs | 3 × DisplayPort 1.4a; 1 × HDMI 2.1a |
| Max Resolution | Up to 8K @60 Hz or 4K @240 Hz (via DSC) |
| Interface | PCIe 4.0 ×16 |
| Cooling | Dual-fan heatsink (dual-slot slot width) |
| Dimensions | ~247 × 120 × 41 mm |
| Warranty | 3 years limited |
| Compatibility | Windows 10/11 (64-bit)- Linux |

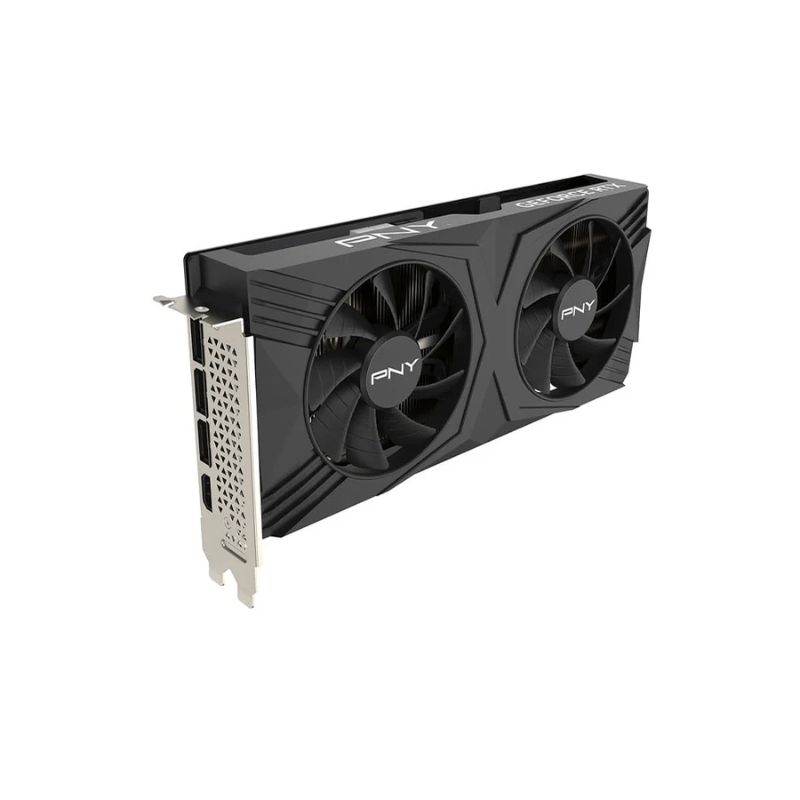

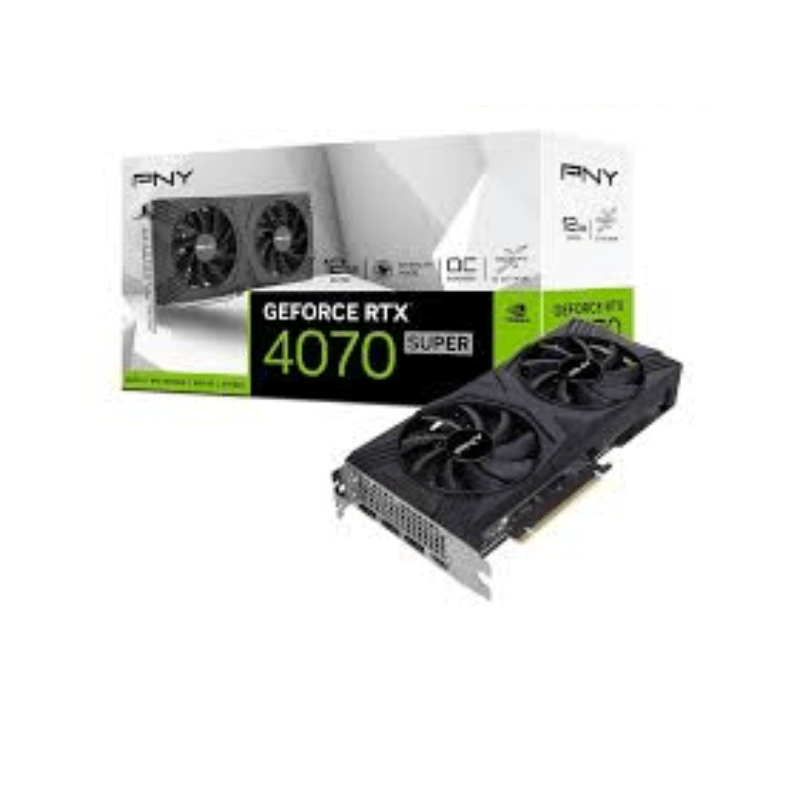

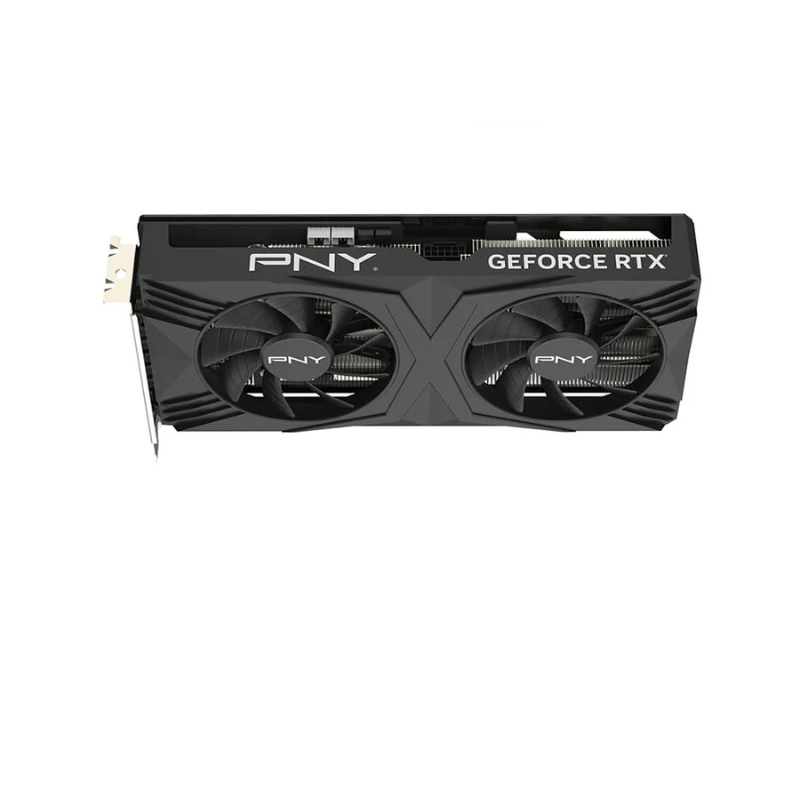

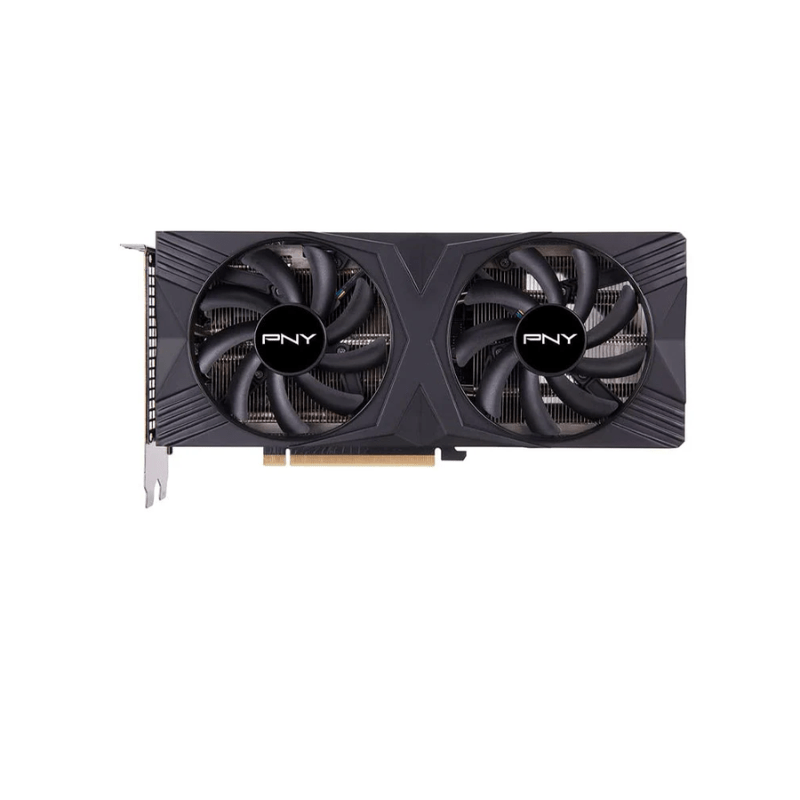

Nvidia GeFORCE 4070 Super 12GB pny (VERTO OC Dual‑Fan) – Full Description
High-End Ada Lovelace Architecture & DLSS 3
The PNY RTX 4070 Super is built on NVIDIA’s Ada Lovelace GPU architecture- featuring 7-168 CUDA cores- 3rd‑generation RT cores and 4th‑generation Tensor cores with DLSS 3 frame generation for significant performance uplift and power efficiency.
Performance & Overclocking
This overclocked variant runs at a base clock of ~1-980 MHz with boost speeds up to ~2-490 MHz. With 12 GB GDDR6X memory (21 Gbps- 192-bit interface yielding ~504 GB/s bandwidth)- it delivers strong performance for both 1440p resolutions and creative workloads.
Compact Dual-Fan Cooling Design
PNY’s VERTO dual-fan cooler provides adequate cooling in a dual-slot- ~247 × 120 × 41 mm compact form. While effective under load- users report temperatures around 81–82 °C (core) and higher hot‑spot readings (~100 °C) depending on usage—making them slightly warmer and louder than some triple‑fan alternatives.
Excellent Game & Creation Support
Optimized for 1440p gaming- the card maintains high frame rates on modern AAA titles- especially with DLSS 3 enabled. It supports 4K output (up to 60Hz via DSC) and is well-suited for content creation via the NVIDIA Studio platform.
Connectivity & Power Requirements
Includes 3 DisplayPort 1.4a and 1 HDMI 2.1a outputs (supporting up to 8K @60Hz or 4K @240Hz). Requires a single 16-pin PCIe power connector (adapter for two 8-pin included)- draws ~220 W- and recommends a 650–700 W PSU.
Warranty & Brand Reputation
PNY offers a 3-year limited warranty on this model. User feedback often describes the brand as reliable and cost-effective- albeit with modest cooling performance compared to premium alternatives.
Frequently Asked Questions
Q: Should I be worried about high temperatures?
A: Core temps around 80‑82 °C are common under load for the dual‑fan version; hot‑spot readings can approach 100 °C. The card doesn’t thermal‑throttle until ~90 °C- but fans may run loud.
Q: How does this compare to triple‑fan models?
A: Triple‑fan variants (XLR8 Epic‑X RGB) offer quieter cooling and better thermal headroom but cost more. Performance differences are marginal.
Q: Is 12 GB VRAM future‑proof?
A: Yes—for 1440p gaming and typical creative workloads. Great for DLSS 3 and AI tasks- though pure 4K gamers might see benefits from GPUs with 16GB VRAM.
Q: How reliable is PNY as a brand?
A: PNY cards generally perform reliably and deliver good value. Some users note fan speed and customer support quirks- though most feedback is positive.
