Description
| Specification | Details |
|---|---|
| Brand | TP‑Link |
| Model | Archer C54 (AC1200) |
| Wireless Bands | 2.4 GHz (300 Mbps)- 5 GHz (867 Mbps) |
| Wi‑Fi Standard | Wi‑Fi 5 (802.11ac/n/a & b/g) |
| Antennas | 4 × External 5 dBi |
| Advanced Wireless Tech | Beamforming- MU‑MIMO |

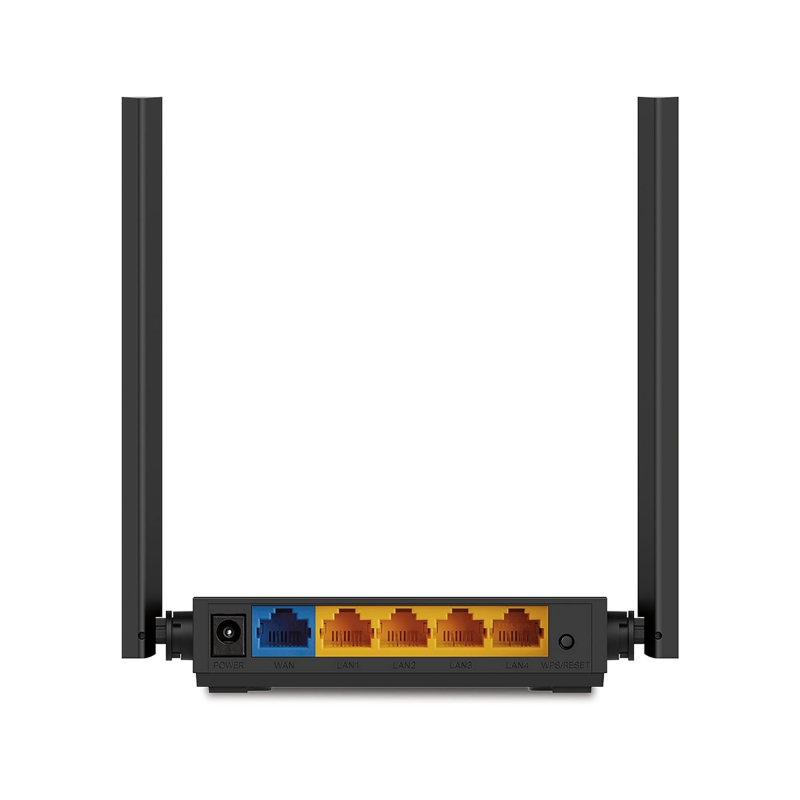

| Ports | 1× WAN 10/100 Mbps- 4× LAN 10/100 Mbps |
| Buttons | WPS / Reset |
| Security | WEP- WPA- WPA2- WPA3; SPI Firewall; Parental Control; Guest Networks |
| Multi-Mode Support | Router- Access Point- Range Extender |
| IPTV Support | IGMP Proxy/Snooping- VLAN- Bridge |
| Network Management | Tether App- Web UI- QoS- Port Forwarding- DDNS |
| Protocols | IPv4- IPv6; PPPoE- Static IP- PPTP/L2TP WAN |
| Power Supply | 9 V DC- 0.85 A |
| Dimensions | 115 × 106.7 × 24.3 mm |
| Certifications | CE- FCC- RoHS |
TP-Link AC1200 Dual Band Wi‑Fi Router – Archer C54
Reliable Dual‑Band Performance (Wi-Fi 5)
The TP-Link Archer C54 is a versatile AC1200 router delivering speeds up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz- ideal for 4K streaming- online gaming- video conferencing- and everyday browsing.
Wide Coverage with Enhanced Antenna Technology

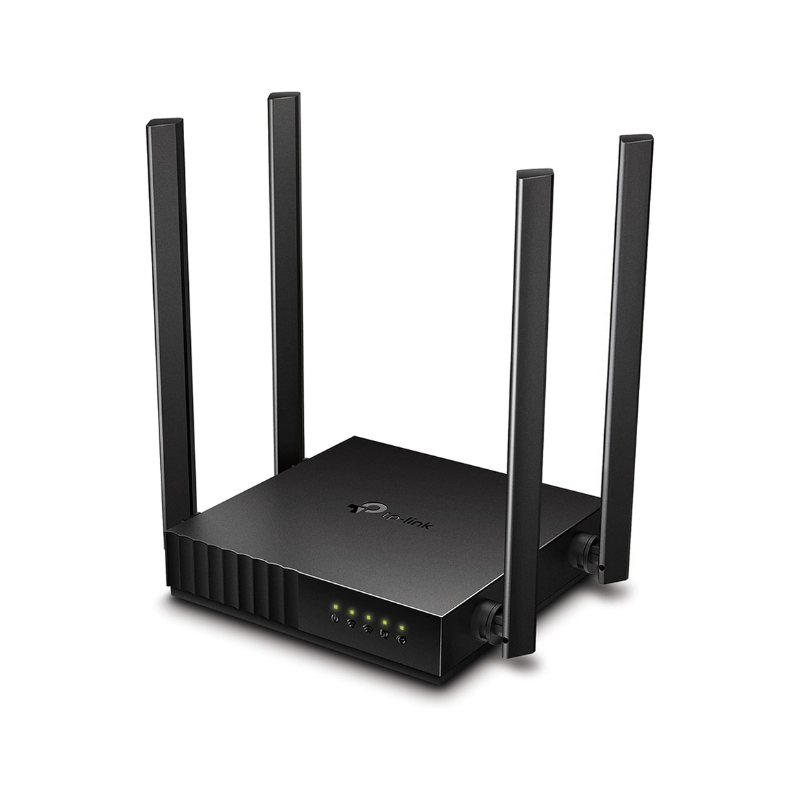

Equipped with four fixed external 5 dBi antennas and Beamforming- this router concentrates Wi‑Fi signals toward devices- achieving reliable coverage across a typical three-bedroom house. It also supports MU-MIMO- allowing it to serve multiple devices simultaneously without compromising speed.
Flexible Operating Modes
The Archer C54 supports three modes to suit different network scenarios:
-
Router Mode (default): Connects directly to your modem and serves Wi‑Fi
-
Access Point Mode: Converts wired networks into wireless
-
Range Extender (Repeater) Mode: Expands existing Wi‑Fi coverage
Enterprise-Level Security and Controls
Featuring an SPI firewall- IP/MAC binding- access control- application-layer gateway- parental controls- and guest Wi‑Fi networks on both bands. It supports modern WPA- WPA2- and WPA3 encryption- as well as WPA/WPA2-Enterprise for high security.
IPTV Support and Advanced Networking
Ideal for IPTV streaming- thanks to IGMP Proxy/Snooping- VLAN tagging- and bridge mode. Compatible with IPv4 and IPv6- and supports WAN types like PPPoE- L2TP- and PPTP. Includes QoS by device- port forwarding- up to TR-069 remote administration- and dynamic DNS services.
Compact Build & Easy Setup
Slim and mountable design measuring approximately 115 × 107 × 24 mm- powered by a 9 V ⎓ 0.85 A adapter. Setup is easy using the TP-Link Tether app or web interface. One-touch WPS button simplifies device connection.
Note on Ethernet Limitations
While advertised Wi‑Fi speeds reach up to 1200 Mbps- the router’s WAN and LAN ports are limited to 10/100 Mbps. This caps wired throughput at around 90–100 Mbps- regardless of your ISP speed or Wi‑Fi link; Wi‑Fi clients may also see throttled performance when routed wirelessly
Questions & Answers
Q: Is the Archer C54 good for HD streaming- gaming- and multiple devices?
A: Yes—the dual-band AC1200 Wi‑Fi- four antennas- MU-MIMO- and QoS enable solid performance for 4K streaming- gaming- and concurrent usage
Q: Why won't I get over 100 Mbps Ethernet speed?
A: The router uses Fast Ethernet ports (10/100 Mbps)- limiting wired throughput to that speed—even if your internet is faster.
Q: Can I use it as an extender or access point?
A: Absolutely—it supports Access Point and Range Extender modes- making it flexible for network expansion.
Q: Should I buy it if I have gigabit internet over 100 Mbps?
A: If your internet plan exceeds 100 Mbps- consider a router with Gigabit Ethernet ports (e.g.- Archer C64 or Wi‑Fi 6 models)- as C54 will bottleneck your wired speed.
Q: Is setup and management straightforward?
A: Yes—use the TP-Link Tether mobile app or the web interface with WPS support for fast and easy configuration
