Description
| Specification | Details |
|---|---|
| Brand | TP‑Link |
| Model | TL‑WN722N |
| Color | White |
| Interface | USB 2.0 |
| Antenna | 4 dBi detachable omnidirectional (RP‑SMA) |
| Wireless Standards | IEEE 802.11n/g/b |
| Max Speed | Up to 150 Mbps (802.11n) |
| Frequency | 2.400–2.4835 GHz |
| Sensitivity | –68 dBm @10% PER (130/108/54 Mbps)- –85 dBm @ 8% PER (11 Mbps)- etc. |
| Security Protocols | WEP 64/128- WPA‑PSK / WPA2‑PSK |
| Advanced Features | WPS button- WMM- roaming- PSP X-LINK (XP) |
| Compatibility | Windows XP–11- Mac OS X 10.8–10.13- Linux 2.6.18–4.4.3 |
| Package Contents | Adapter- USB cable- CD- quick guide |
| Operating Temp./Humidity | 0–40 °C- humidity 10–90% non-condensing |
| Certifications | CE- FCC- RoHS |

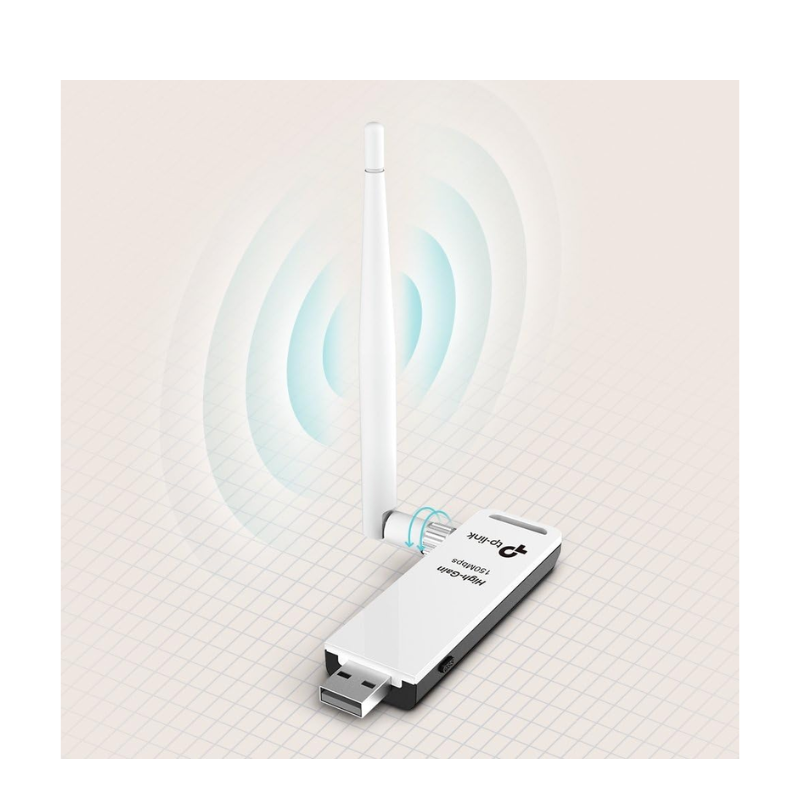

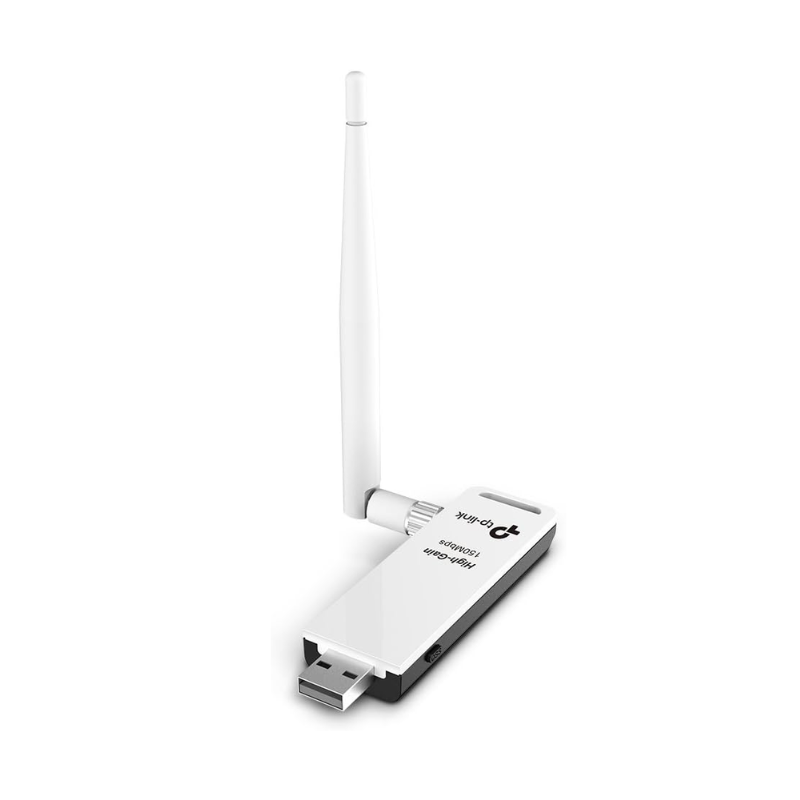

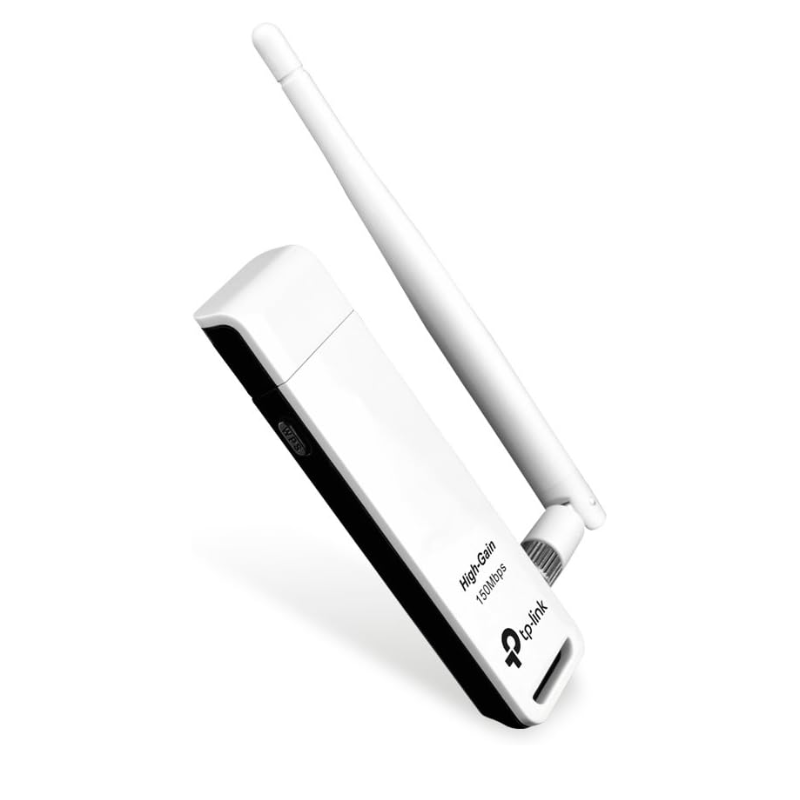

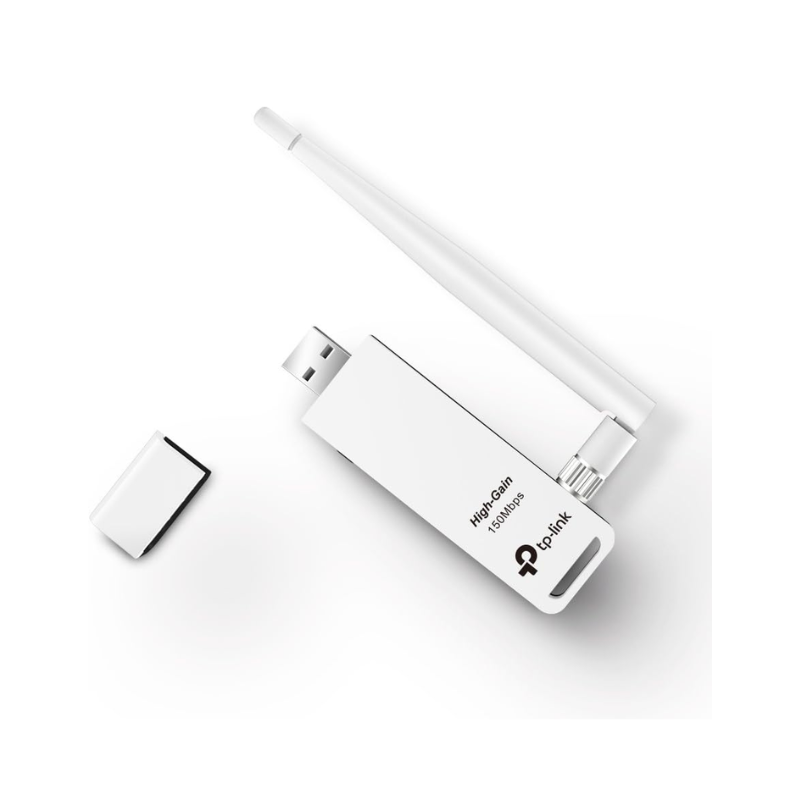

TP-Link TL-WN722N High Sensitivity Wireless USB Adapter – Up to 150 Mbps
Overview
The TP-Link TL-WN722N is a high-gain USB Wi-Fi adapter that delivers up to 150 Mbps wireless speed. With its detachable 4 dBi external antenna- USB 2.0 interface- and support for WPS push-button security- it's ideal for boosting connectivity on desktops and laptops that lack strong built-in Wi-Fi.
Key Features
Hardware Highlights
USB 2.0 interface compatible with most systems.
Detachable omnidirectional antenna (RP‑SMA- 4 dBi) enhances signal strength and flexibility. Adjust orientation for optimal reception.
WPS button for easy and secure wireless encryption setup in one pres
Wireless Capabilities
Supports IEEE 802.11n/g/b- with speeds up to 150 Mbps on 802.11n- 54 Mbps on 11g- and 11 Mbps on 11b.
Reception sensitivity:
130 Mbps: –68 dBm @ 10% PER
54/108 Mbps: –68 dBm @ 10% PER
11 Mbps: –85 dBm @ 8% PER
6 Mbps: –88 dBm @ 10% PER
1 Mbps: –90 dBm @ 8% PERSupports Ad-Hoc and Infrastructure network modes.
Supports WEP- WPA-PSK- WPA2-PSK- with WMM and roaming support.
Compatibility & Package
Compatible with Windows XP through Windows 11- Mac OS X (10.8–10.13)- and Linux kernels 2.6.18–4.4.3.
Includes:
TL‑WN722N adapter
USB extension cable
Driver/resource CD
Quick installation guide
Operating Conditions
Operating Temperature: 0 °C ~ 40 °C (32℉ ~ 104℉)
Storage Temperature: –40 °C ~ 70 °C (–40℉ ~ 158℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Benefits & Use Cases
Improved Wi-Fi range: The external high-gain antenna helps in connecting to routers or access points located far away or through obstacles.
Plug-and-play simplicity: USB interface with cross-platform support and easy WPS setup.
Better performance than onboard Wi-Fi: Particularly useful if your device’s built‑in adapter is weak- outdated- or unstable.
Budget-friendly: Offers a solid balance between price and performance in the N150 category.
Compatibility with legacy networks: Works with older 802.11g/b networks while offering upgrade potential through 802.11n.
Limitations & Feedback
2.4 GHz only: Does not support 5 GHz Wi-Fi- so it won’t reach modern AC or AX speeds
Real-world throughput lower: Typical actual speeds are about half the theoretical 150 Mbps—expect around 60–80 Mbps in optimal settings.
Driver & version variations: Later hardware versions (v3+) use Realtek chipsets that may not support monitor mode or packet injection used in penetration testing. Only v1/v2 officially support these features.
Connection stability issues: Some users report dropouts- USB connector wobble- or low throughput. A USB extension cable helps mitigate port interference.
Questions & Answers
Q: Why should I use this adapter instead of built-in Wi-Fi?
A: The TL-WN722N offers stronger external signal through a high‑gain antenna- potentially outperforming weak or damaged internal modules. It also works across many platforms with easy USB setup.
Q: Can I reach 150 Mbps speed in real life?
A: Speeds up to 150 Mbps are theoretical. Real-world tests usually yield around 60–80 Mbps- influenced by interference- router type- and USB port speed.
Q: Does it work for Wi‑Fi penetration or monitor mode?
A: Only older versions (v1/v2) support monitor mode and packet injection. USR market units (v3+) may lack these capabilities without custom drivers.
Q: Is it reliable long-term?
A: Generally yes—many users report solid performance at an affordable price- though some note physical connector wobble or lower than expected speed. Using the included extension cable improves stability.
